MOLIFT QUICK RAISER 205
A sit to stand hoist with outstanding lifting capacity

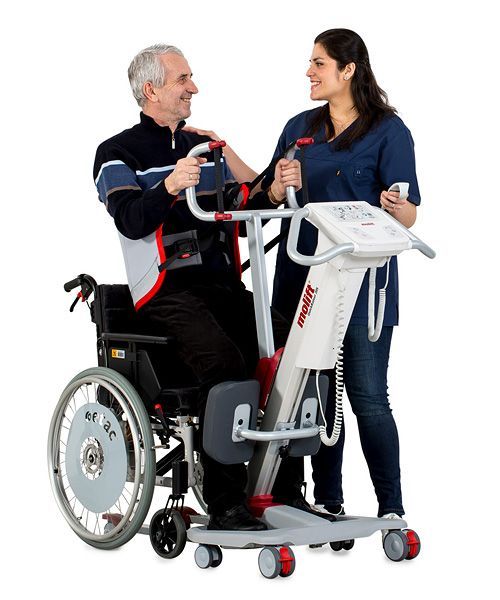

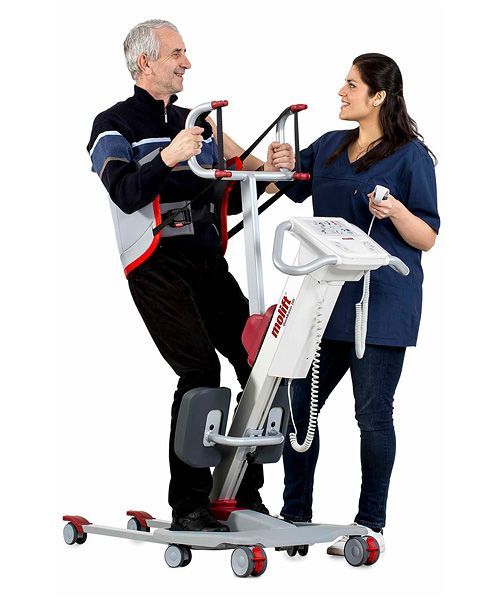

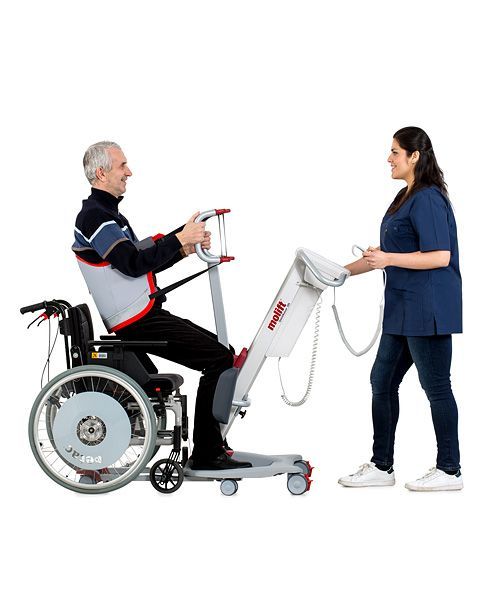

Molift Quick Raiser 205 is a state of the art sit-to-stand hoist, with an electrically adjustable leg base and an outstanding lifting capacity. The standing hoist is comfortable, stable and safe with exceptional maneuverability.
Stable and compact

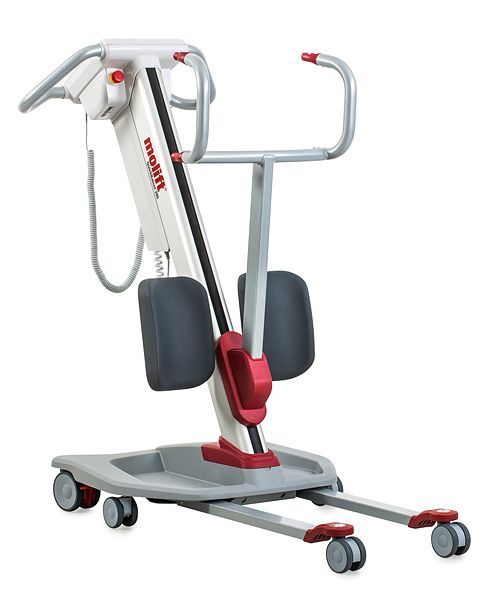

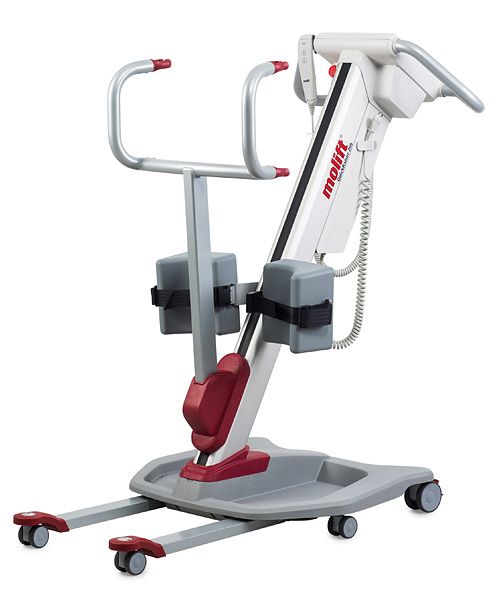

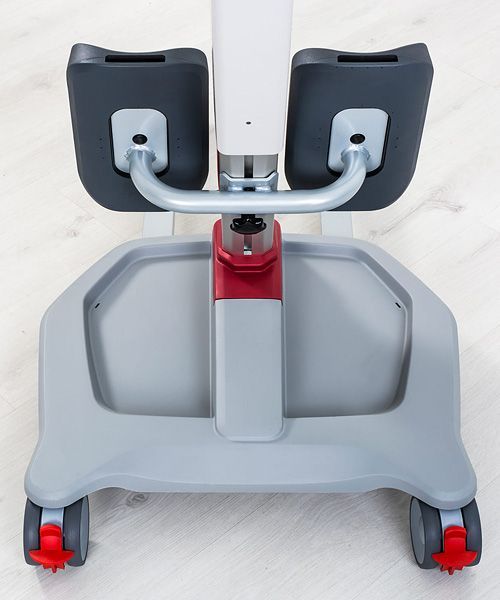

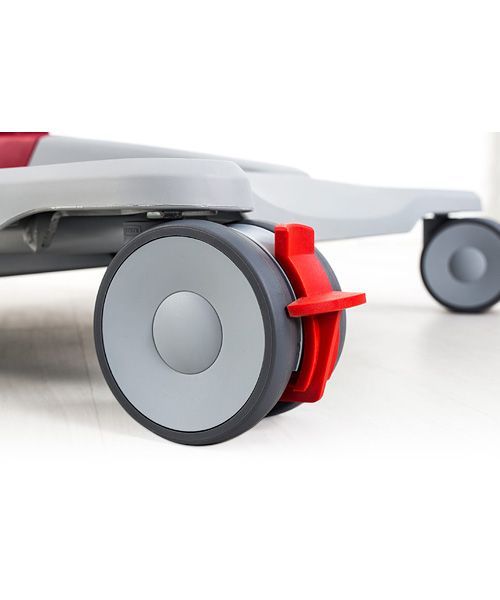

Quick Raiser 205 is compact, stable and exceptionally easy to maneuver. The unique wheel position, angled push bar and extraordinary weight distribution of the base provide a small turning radius and easy maneuverability even in very narrow spaces. With the small castor option, it fits under most beds and chairs while the electrically adjustable legs enable accessibility almost everywhere. The fixed-leg option benefits a very small footprint.
Natural pattern of movement

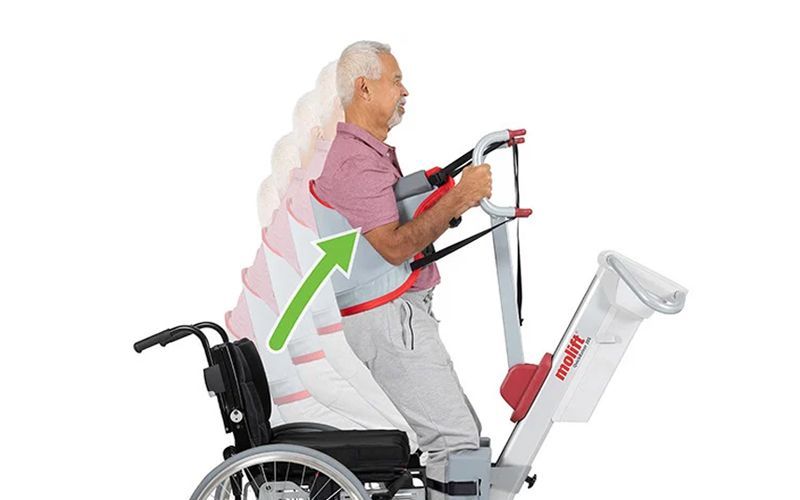

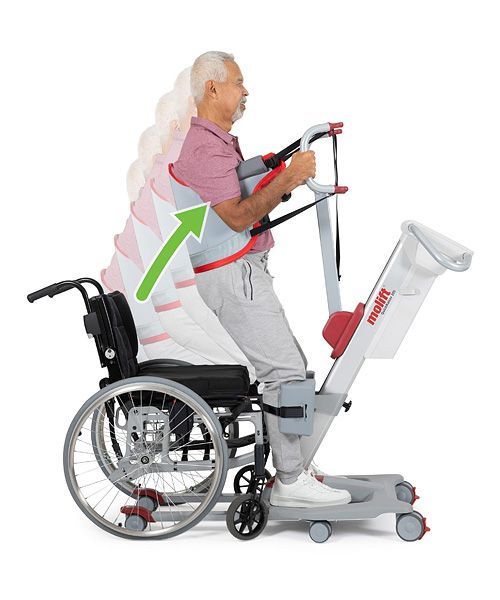

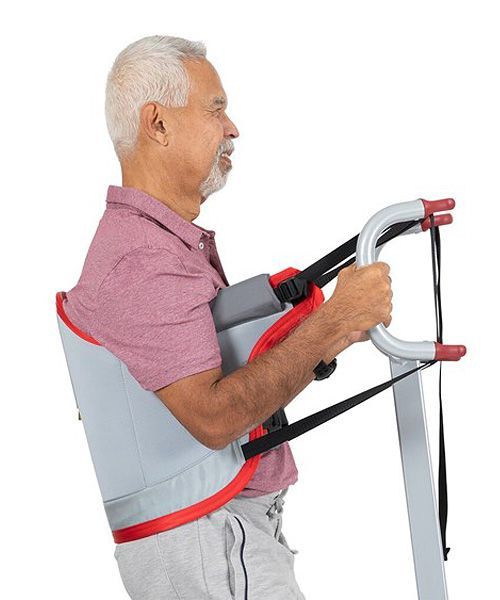

The Active Lifting Arm (4-point sling bar) and the RgoSling Active provides extra support when hoisting from sitting to standing. The inclined column encourages a natural pattern of movement and fulfils the hoisting needs of users with some weight-bearing capacity. The Active Lifting Arm combined with the sling provides a comfortable, stable and safe hoisting solution.
FEATURES
VARIANTS
Specifications

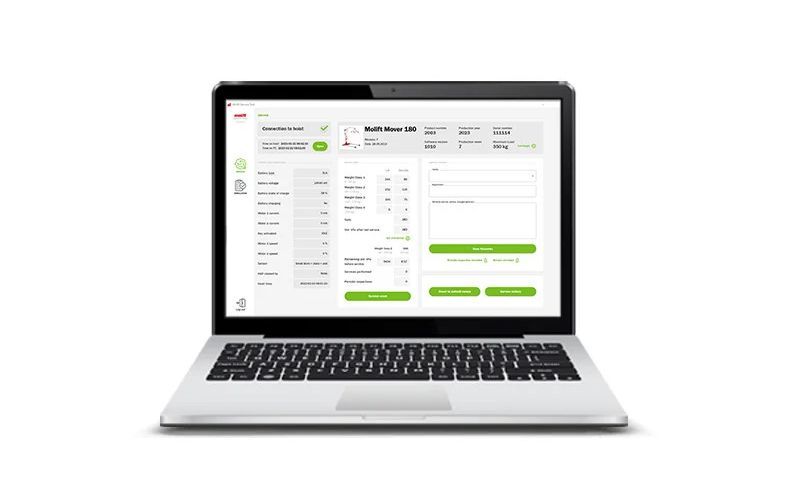

| Battery charge time (hours) | Hoisting speed 169 lbs. (mm/sec) | Material | Maximum user weight (lbs.) | Product includes | Rated performance | Service software | Width chassis, outer (mm) |
|---|---|---|---|---|---|---|---|
| 6 | 35 | Aluminium, Plastic, Steel | 451 | Chassis,column, leg support, control panel, hand control, lifting arm, battery and integrated charger | 100 hoists at: 165lbs. | Molift Service Tool | 619 |
| Etac item number | Battery | Leg height (Inches) | Length (Inches) | Total weight (lbs.) | Weight chassi (lbs.) | |
|---|---|---|---|---|---|---|
| Active lifting arm, castor size Ø75mm | M29000 | LiFePO4 25,6V 2,4 Ah | 2.95 | 51.9 | 97 | 37.4 |
| Quick Raiser 205 (451 lbs. SWL) - Adjustable legs w/2910056 Knee Support. Active lifting arm, cartor size 100mm) | M29100 | LiFePO4 25,6V 2,4 Ah | 3.93 | 51.9 | 97 | 37.4 |
| Active lifting arm (fixed leg), castor size Ø75mm | M29150 | SLA 24V 2,9 Ah | 2.95 | 45.8 | 92.5 | 33 |
| Quick Raiser 205 (541 lbs. SWL) - Fixed Legs w/2910056 Knee Support. Active lifting arm, castor size 100mm) | M29200 | SLA 24V 2,9 Ah | 3.93 | 45.8 | 92.5 | 33 |
| StandUp lifting arm, castor size Ø75mm | M29001 | LiFePO4 25,6V 2,4 Ah | 2.95 | 51.9 | 97 | 37.4 |
| Standup lifting arm, castor size Ø100mm | M29101 | LiFePO4 25,6V 2,4 Ah | 3.93 | 51.9 | 97 | 37.4 |
| StandUp lifting arm (fixed leg), castor size Ø75mm | M29151 | SLA 24V 2,9 Ah | 2.95 | 45.8 | 92.5 | 33 |
| StandUp lifting arm (fixed leg), castor size Ø100mm | M29201 | SLA 24V 2,9 Ah | 3.93 | 45.8 | 92.5 | 33 |
ACCESSORIES
Slings

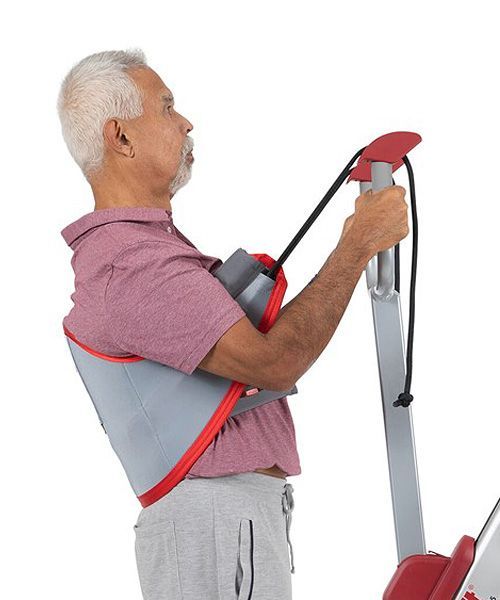

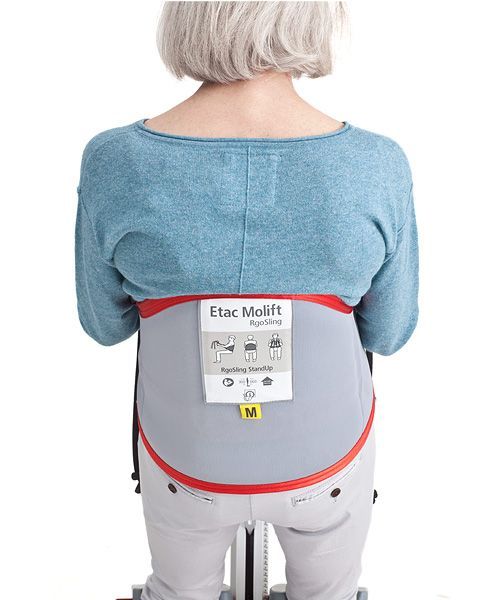

Molift RgoSling Active
The ideal sling solution for active transfer with Molift QuickRaiser 205.
Leg and foot supports
Complete kit Bracket & Cushions
for Molift Quick Raiser 205.
Cushions
Set of Cushions
for Molift Quick Raiser 205.
Leg and foot supports

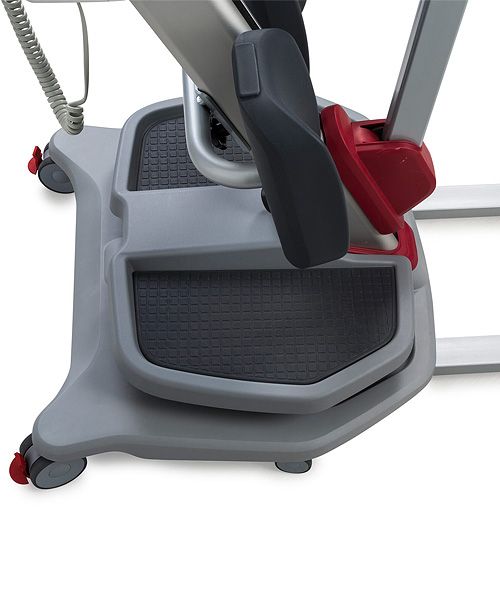

Footplate
for Molift Quick Raiser 205.
Leg and foot supports
Set of inlays for footplate
Inlays with slipresistant material to increase friction.
DOCUMENTS
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Assembly instruction
EC Declaration of conformity
Product folder
User manual
VIDEOS
Molift Quick Raiser 205 - introduction
A short introduction to Molift Quick Raiser 205.
Molift Quick Raiser 205 & StandUp sling
Transfer from a wheelchair using a 2-point lifting arm with StandUp sling.
Molift Quick Raiser 205 - wheelchair to commode
How to transfer form a wheelchair to a commode.
Molift Quick Raiser 205 - from bed to wheelchair
How to transfer from a bed to a wheelchair.
