RAPID-FIT SLING
MODEL 170
FEATURES



  • Easy to install and remove

  • This model is secure and comfortable with hole opening, can be used for hygienic care for people with less muscular strength

  • Integrated side pockets to fold in the support straps to prevent damage to the sling while in a wheelchair or during washing

  • The front red cross-over loops helps to hold the person in the sling offering less sheering and prevents sliding

  • No rigid parts are used and gives good support without the risk of injuries to the client and carer

  • Embroidered identification tags to prevent fading with serial number

  • Unique 4 way stretch polyester mesh material only offered by Physio-Trace Inc. with more durability and built-in preventative measures

  • Optional Spacer Fabric



In compliance with
CSA/ISO 10535-2006

SLING ATTACHMENT
Insert side straps (#1) in the middle straps (#2)
NEVER THE OPPOSITE.

Two extra straps always included with model 170.

Please use this code when ordering (Code QM-0018).

RAPID-FIT SLING
MODEL 170
FEATURES



  • Easy to install and remove

  • This model is secure and comfortable with hole opening, can be used for hygienic care for people with less muscular strength

  • Integrated side pockets to fold in the support straps to prevent damage to the sling while in a wheelchair or during washing

  • The front red cross-over loops helps to hold the person in the sling offering less sheering and prevents sliding

  • No rigid parts are used and gives good support without the risk of injuries to the client and carer

  • Embroidered identification tags to prevent fading with serial number

  • Unique 4 way stretch polyester mesh material only offered by Physio-Trace Inc. with more durability and built-in preventative measures

  • Optional Spacer Fabric



In compliance with
CSA/ISO Z10535.2.17

SLING ATTACHMENT
Insert side straps (#1) in the middle straps (#2)
NEVER THE OPPOSITE.

Two extra straps always included with model 170.

Please use this code when ordering (Code QM-0018).

CODE

170-P
170-M
170-G
170-XG

MATERIAL
Mesh
SIZE
Small
Medium
Large
X-Large
DIMENSIONS
A= 30”     B= 47”     C=25”
A= 35”     B= 49”     C=26”
A= 39”     B= 52”     C=26”
A= 44”     B= 52”     C=26”
CAPACITY
600 lbs

CODE

170-P
170-M
170-G
170-XG

MATERIAL
Mesh
Mesh
Mesh
Mesh
SIZE
Small
Medium
Large
X-Large
DIMENSIONS
A= 30”     B= 47”     C=25”
A= 35”     B= 49”     C=26”
A= 39”     B= 52”     C=26”
A= 44”     B= 52”     C=26”
CAPACITY
600 lbs
600 lbs
600 lbs
600 lbs
AVAILABLE OPTION

CODE

QM-005

DESCRIPTION

Headrest

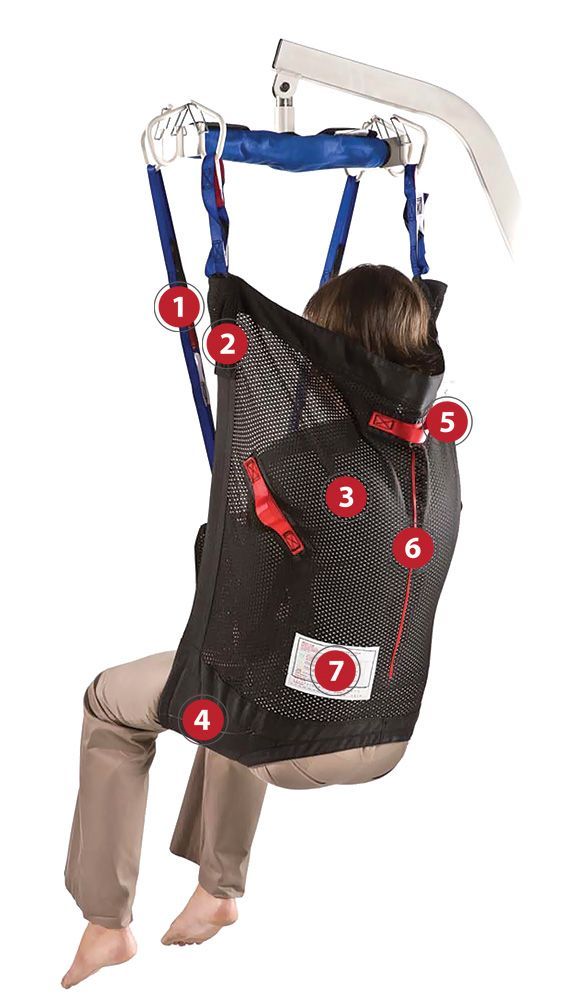

toile-170
icon_1
Colored loops
The colored loops ensure
symmetry on the lift
icon_2
Pockets
For loops insertion.
icon_3
Material
Low friction, dirt repellent polyester.
icon_4
Padding on legs
Inset foam pads on legs for
increased comfort.
icon_5
Ergonomic handles
Simplify patient transfers.
icon_6
Positioning band
Simplify appropriate positioning of
the sling. The color of the band
identifies type of sling.
icon_7
Instruction label
Indicates all information on use,
maintenance and technical
specifications.
Fit
Excellent fit and many sizes to choose from for comfort and safety.
Strength
Maximum lifting capacity 600 lbs.
One year (1) warranty.
Washing
Machine washable with bleaching
and/or peroxide solutions up to 140ºF.
Machine dry.
